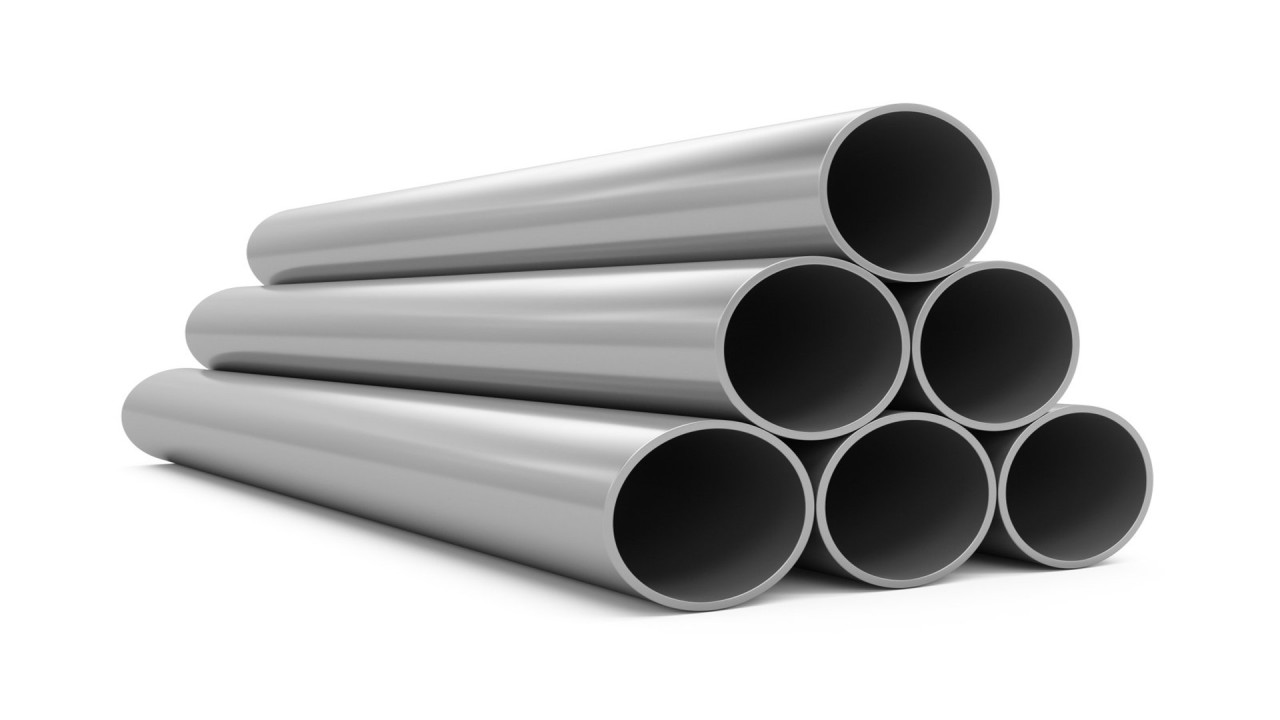

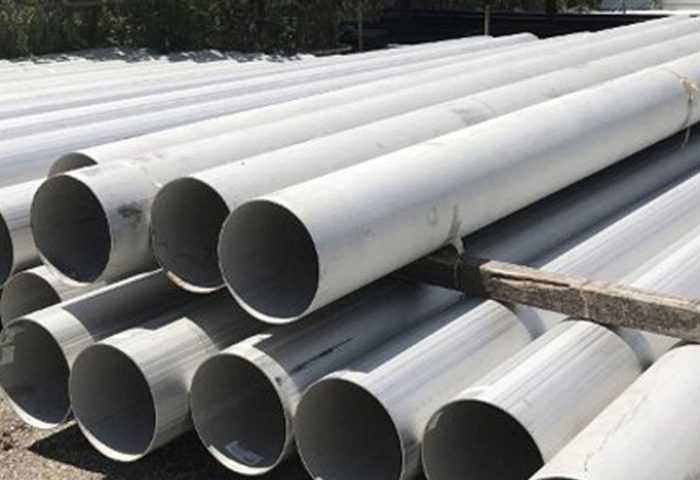

Monel 404 UNS N04404 Alloy Steel Pipe: A Comprehensive Guide
Monel 404 UNS N04404 alloy steel pipe is a highly versatile and corrosion-resistant material that finds applications in various industries. In this comprehensive guide, we will explore the properties, applications, and advantages of Monel 404 alloy steel pipe.
What is Monel 404 UNS N04404 Alloy Steel?
Monel 404 UNS N04404 is a nickel-copper alloy that offers excellent corrosion resistance in various environments. It is known for its high strength, good weldability, and resistance to stress corrosion cracking. The addition of copper in Monel 404 provides enhanced resistance to corrosive media, including seawater, acids, and alkaline solutions.
Properties of Monel 404 UNS N04404 Alloy Steel Pipe
Monel 404 alloy steel pipe exhibits several properties that make it suitable for a wide range of applications. Here are some key properties of Monel 404:
- Corrosion Resistance: Monel 404 offers exceptional resistance to corrosion in various environments, including seawater, acids, and alkaline solutions. It is particularly resistant to pitting and crevice corrosion, making it ideal for applications in marine and chemical industries.
- High Strength: Monel 404 has high tensile strength and excellent mechanical properties, allowing it to withstand high-stress conditions. It retains its strength even at elevated temperatures, making it suitable for applications in demanding environments.
- Good Weldability: Monel 404 can be easily welded using various welding techniques, including gas tungsten arc welding (GTAW) and gas metal arc welding (GMAW). This allows for easy fabrication and installation of Monel 404 alloy steel pipes.
- Resistance to Stress Corrosion Cracking: Monel 404 exhibits excellent resistance to stress corrosion cracking, which is a common form of corrosion that occurs under tensile stress in corrosive environments. This property makes it suitable for applications where the material is subjected to both stress and corrosive media.
- Thermal Stability: Monel 404 maintains its mechanical properties and corrosion resistance at high temperatures, making it suitable for applications in elevated temperature environments.
- Low Magnetic Permeability: Monel 404 has low magnetic permeability, which makes it suitable for applications where magnetic interference needs to be minimized, such as in electrical and electronic equipment.
1. Chemical Composition of Monel 404
| The Chemical Composition of Monel 404, % | |
|---|---|
| Nickel | 52.0-57.0 |
| Carbon | ≤0.15 |
| Manganese | ≤0.10 |
| Iron | ≤0.50 |
| Sulfur | ≤0.024 |
| Silicon | ≤0.10 |
| Copper | Balance |
| Aluminum | ≤0.05 |
2. Physical Properties of Monel 404
| Density | Specific Heat | Thermal Conductivity | Electrical Resistivity | Curie Temperature |
|---|---|---|---|---|
| g/cm3 | J/kg. °C | W/m.°C | µΩ·m | °F(annealed) |
| 8.91 | 414 | 21.0 | 0.498 | -110 |
3. Mechanical Properties of Monel 404
| Tensile Strength, min. | Yield Strength, min. | Elongation, min. | ||
|---|---|---|---|---|
| Mpa | ksi | Mpa | ksi | % |
| 483 | 70 | 172 | 25 | 35 |
PHYSICAL PROPERTIES
Density: 0.322 lbs/in3, 8.91 g/cm3
Electrical Resistivity: ohm-cir mil/ft (microhm-m)
At 70 °F (21 °C): 294 (0.498)
Specific Heat: Btu/lb-°F (J/g-°C)
At 70 °F (21 °C): 0.0989 (0.414)
Thermal Conductivity: BTU/hr/ft2/ft/°F (W/m-°C)
At 70 °F (21 °C)-133 (21)
Mean Coefficient of Thermal Expansion: µin/in-°F,(µm/m°C)
70 – 200 °F (21 – 93 °C) 7.39 (13.3)
70 – 572 °F (21 – 300 °C) 8.50 (15.3)
70 – 1000 °F (21 – 539 °C) 9.22 (16.6)
70 – 1500 °F (21 – 816 °C) 9.78 (17.6)
Modulus of Elasticity: ksi (MPa) in Tension
24.5 X 103 (169 X 103)
Magnetic Permeability, H = 200 Oersteds: Annealed 1.0017 max
Melting Point: 2370 °F (1300 °C)
Applications of Monel 404 UNS N04404 Alloy Steel Pipe
Monel 404 alloy steel pipe finds applications in various industries due to its excellent corrosion resistance and mechanical properties. Some common applications include:
- Marine Industry: Monel 404 is widely used in the marine industry for applications such as seawater piping systems, heat exchangers, and condensers. Its resistance to corrosion in seawater makes it ideal for these applications.
- Chemical Processing: Monel 404 is used in chemical processing plants for piping systems, valves, pumps, and fittings. Its resistance to a wide range of corrosive chemicals makes it suitable for handling acids, alkaline solutions, and other corrosive media.
- Oil and Gas Industry: Monel 404 is used in the oil and gas industry for applications such as downhole tubing, wellhead components, and offshore platforms. Its corrosion resistance and high strength make it suitable for these demanding environments.
- Power Generation: Monel 404 is used in power generation plants for applications such as heat exchangers, condensers, and piping systems. Its resistance to corrosion and thermal stability make it suitable for these high-temperature environments.
- Aerospace: Monel 404 is used in the aerospace industry for applications such as aircraft engine components, exhaust systems, and fuel lines. Its high strength and resistance to corrosion make it suitable for these demanding aerospace applications.
Advantages of Monel 404 UNS N04404 Alloy Steel Pipe
Monel 404 alloy steel pipe offers several advantages over other materials. Here are some key advantages of using Monel 404:
- Corrosion Resistance: Monel 404 exhibits excellent resistance to corrosion in various environments, including seawater, acids, and alkaline solutions. This extends the lifespan of the piping system and reduces maintenance costs.
- High Strength: Monel 404 has high tensile strength and excellent mechanical properties, allowing it to withstand high-stress conditions. This ensures the structural integrity of the piping system and reduces the risk of failure.
- Good Weldability: Monel 404 can be easily welded using various welding techniques, allowing for easy fabrication and installation of the piping system. This reduces the overall installation time and cost.
- Resistance to Stress Corrosion Cracking: Monel 404 exhibits excellent resistance to stress corrosion cracking, reducing the risk of failure under tensile stress in corrosive environments5. Thermal Stability: Monel 404 maintains its mechanical properties and corrosion resistance at high temperatures, making it suitable for applications in elevated temperature environments. This ensures the reliability and performance of the piping system under extreme conditions.
- Low Magnetic Permeability: Monel 404 has low magnetic permeability, minimizing magnetic interference in sensitive equipment and systems. This is particularly beneficial in electrical and electronic applications.
- Versatility: Monel 404 alloy steel pipe can be used in a wide range of industries and applications due to its excellent corrosion resistance and mechanical properties. It provides a versatile solution for various piping needs.
- Longevity: Monel 404 has a long lifespan due to its corrosion resistance, reducing the need for frequent replacements and maintenance. This leads to cost savings in the long run.
- Reliability: Monel 404 is a reliable material that can withstand harsh environments and demanding conditions. It provides a dependable solution for critical applications where failure is not an option.
Frequently Asked Questions (FAQ)
- What is the difference between Monel 404 and Monel 400?
Monel 404 and Monel 400 are both nickel-copper alloys, but they have different compositions. Monel 404 contains a higher copper content compared to Monel 400, which provides enhanced corrosion resistance. Monel 404 is specifically designed for applications requiring improved resistance to corrosive media. - Can Monel 404 be used in seawater applications?
Yes, Monel 404 is highly resistant to corrosion in seawater and is commonly used in marine applications such as seawater piping systems, heat exchangers, and condensers. - What welding techniques are suitable for Monel 404 alloy steel pipe?
Monel 404 can be easily welded using various techniques, including gas tungsten arc welding (GTAW) and gas metal arc welding (GMAW). It is important to use appropriate filler metals and follow recommended welding procedures for optimal results. - Is Monel 404 suitable for high-temperature applications?
Yes, Monel 404 maintains its mechanical properties and corrosion resistance at high temperatures, making it suitable for applications in elevated temperature environments such as power generation and chemical processing. - Where can I purchase Monel 404 alloy steel pipe?
Monel 404 alloy steel pipe can be purchased from reputable suppliers and distributors specializing in corrosion-resistant alloys. It is recommended to source from trusted manufacturers to ensure the quality and authenticity of the material.
In conclusion, Monel 404 UNS N04404 alloy steel pipe is a highly versatile and corrosion-resistant material that finds applications in various industries. Its exceptional properties, such as corrosion resistance, high strength, and thermal stability, make it suitable for demanding environments. By choosing Monel 404, you can ensure the longevity, reliability, and performance of your piping systems.
