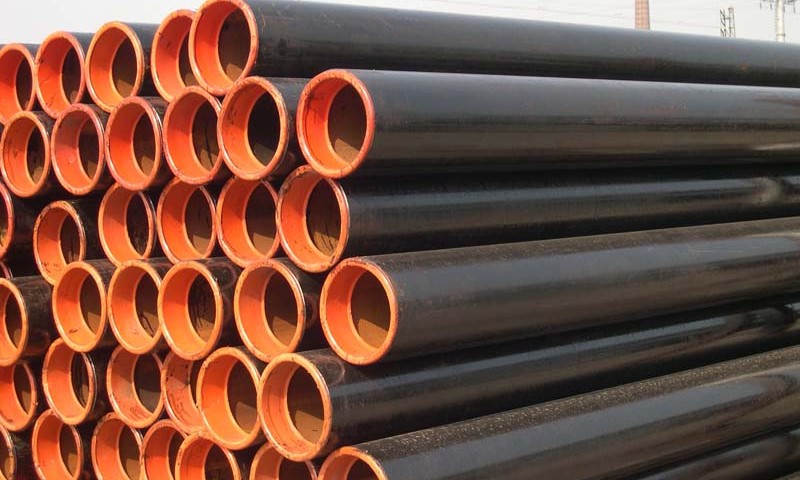

Fluid pipe Standard: GB/T8163-1999, ASTM A53-98, JIS G3452-1998, JIS G3454-1998, ASTM A106, DIN 1629-1984
Tolerance on Dimensions
| Pipe types | Pipe Szie(mm) | Tolerances | |
| Hot rolled | OD | All | ±1% (min ±0.50mm) |
| WT | All | +15%, -12.5% | |
| Cold drawn | OD | 6～10 | ±0.20mm |
| 10～30 | ±0.40mm | ||
| 30～50 | ±0.45mm | ||
| >50 | ±1% | ||
| WT | ≤1 | ±0.15mm | |
| >1～3 | +15% -10% | ||
| >3 | +12.5% -10% | ||
sizes of fluid pipes:
