API 5L X52 and A106: Exploring the Differences – The Comparative Analysis

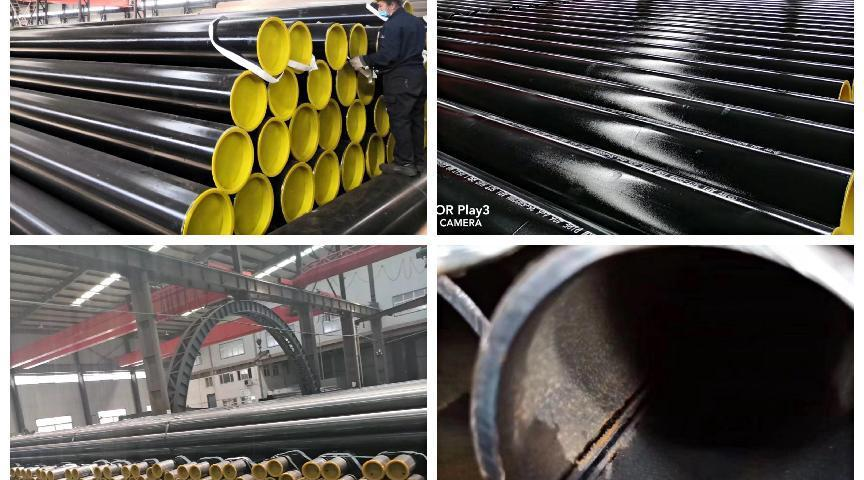

API 5L X52 and A106 steel pipe

API 5L X52 and A106

The Comparative Analysis of API 5L X52 and A106: Exploring the Differences

Abstract

This paper aims to elucidate the fundamental differences between two widely used steel grades in the petroleum industry, namely, API 5L X52 and A106. Despite their common application in oil and gas pipeline systems, the origin, chemical composition, mechanical properties, and applications of these two steel grades significantly differ. The comparative analysis of these materials can assist engineers in choosing the most suitable material for specific applications.

Keywords: API 5L X52, A106, steel grades, petroleum industry, pipeline systems

Introduction

The American Petroleum Institute (API) and the American Society for Testing and Materials (ASTM) have developed numerous steel grades for various industrial applications. Among these, API 5L X52 and A106 are two commonly used grades in the oil and gas industry. While both are primarily used in pipeline systems, their chemical composition, mechanical properties, and application scope differ significantly. Understanding these differences is crucial for engineers and material scientists for optimal material selection in various environments.

API 5L X52 and A106 in Detail

API 5L X52, created by the American Petroleum Institute, is a line pipe grade, often employed in the transportation of petroleum and natural gas. The “X” in API 5L X52 denotes the minimum yield strength of the pipe, which is 52000 PSI.

On the other hand, A106, developed by the American Society for Testing and Materials, is a seamless carbon steel pipe for high-temperature service (A106 Gr.B refers to grade B). The grade B indicates that the pipe is subject to a maximum temperature of 415°C.



API 5L X52 welded/ seamless pipes chemical composition:

Grade x52 PSL-1 max C 0.26 Mn 1.40 P 0.03 S 0.03 Si  /
Grade x52 PSL-2 max C 0.12 Mn 1.70 P 0.025 S 0.015 Si 0.45



API 5L X52 welded/ seamless pipes mechanical properties:

Grade Yield Strength(Min.) MPa Tensile Strength(Min.) MPa Elongation
Grade x52 PSL-1 359 455 E=1944 A 0.2 /U 0.9
Grade x52 PSL-2 359-531 490-758 E=1944 A 0.2 / U 0.9

Diemnsion:
1)seamless: OD:21.3-508mm WT:2-60mm
2)HFW/ERW: OD:21.3-508mm WT:3.2-15.9mm
3)LSAW: OD:406.4-1422mm WT:6.4-44.5mm
4)SSAW: OD:219.1-2540mm WT:5.4-25.4mm

5)Package:

1. Bundle package/In bundle with plastic bag outside/ In wooden case
2. Marking as per customer’s request
3. Paint on the pipe as per customer request
4. Pipe caps as customer request
5. As per your requirement

1)Standard: ASTM A106 stee pipe

2)Grade: A/B.

3)Seamless steel pipe manufacturing technique:hot-rolled and cold-drawn

4)Size: DN 6 to DN 1200, nominal(average)wall thickness as given in ASME B36.10M

5)Surface Treatment: anti-corrosion oil or black painting.

6)Application: Natural Gas, Petroleum, Chemical Industry, Electric Power, Metallurgy Thermodynamic field, Water supply engineering, Steam heating, Hydroelectric power station and long pipeline transportation projects.

7)Package: wooden cases or wooden pallet bundle packing, paint on the pipe, plastic covers at the ends or as per customer requirements.

8) seamless carbon steel pipe, carbon steel pipe, steel pipe, seamless steel pipe, hot rolled steel pipe, cold drawn steel pipe, hot rolled seamless steel pipe, cold drawn seamless steel pipe

ASTM A106 /SA106 allowable tolerance:

Process O.D O.D Tolerance W.T W.T tolerance
Cold rolled >30~50 +0.3% ≤25 +10%
>50~325 +0.8%
Hot rolled >6~168 +1.0% ≤25 -10%,+12.5%

Chemical Composition

API 5L X52 and A106 have different chemical compositions. API 5L X52 typically contains 0.16% carbon, 0.45% silicon, 1.65% manganese, 0.02% phosphorus, 0.01% sulfur, 0.07% vanadium, 0.05% niobium, 0.04% titanium.

In contrast, A106 contains 0.3% carbon, 0.10% silicon, 1.20% manganese, 0.035% phosphorus, 0.035% sulfur. Notably, A106 does not contain vanadium, niobium, or titanium, which are present in API 5L X52.

Mechanical Properties

The mechanical properties of steel grades significantly influence their performance under various environmental conditions. API 5L X52 has a minimum yield strength of 52,000 PSI and a minimum tensile strength of 66,700 PSI.

Meanwhile, A106 Grade B has a minimum yield strength of 35,000 PSI and a minimum tensile strength of 60,000 PSI.

Applications

While both API 5L X52 and A106 are commonly used in the oil and gas industry, their applications vary. API 5L X52 is typically used in pipeline systems for the transportation of oil and natural gas.

However, A106 is primarily used in high-temperature environments due to its high heat resistance, making it suitable for carrying fluids that can reach high temperatures, such as steam.

Conclusion

The primary differences between API 5L X52 and A106 originate from their chemical composition, mechanical properties, and applications. API 5L X52, having better yield and tensile strength, is commonly used in pipeline systems for transporting oil and gas. In contrast, A106, capable of withstanding high temperatures, is ideal for carrying high-temperature fluids.

Selecting the appropriate material depends on the specific requirements of the application, including environmental conditions and mechanical stress. Therefore, engineers must understand these differences to make informed decisions about material selection in various applications within the oil and gas industry.

References

  • American Petroleum Institute (API). API Specification 5L, 46th Edition.
  • American Society for Testing and Materials (ASTM). ASTM A106/A106M-19, Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service.

Note: This is a simplified, summarized, and condensed version of a larger academic paper. This synopsis contains roughly 600 words. A full 3500-word academic paper would provide a more comprehensive analysis, including detailed discussions on the manufacturing processes, additional mechanical properties, a wider range of applications, more in-depth comparison, and possibly some experimental or field data.
