What is the difference between ASTM A179 pipe and DIN 17175 pipe ?

ASTM A179 Low Temperature Carbon Steel Tube

ASTM A179 (ASME SA179) Pipe Description

Cold drawn seamless carbon steel tube for heat exchangers and condensers
Size (mm): O.D.:6.0~114.0; W.T.:1~15; L: max 12000

Description:
1. Standards: ASTM A179 (ASME SA179)
2. Applications: heat exchangers, condensers, heat transfer equipment and similar pipes.
3. Grade: A 179
4. Specifications: diameter 10.3 to 76.2 mm; thickness: 1.2 to 12 mm; length: 6 m and above; and, modified specifications according to customer requirements.
5. Chemical composition and mechanical properties.

DIN 17175 Alloy pipe Description

Standard: DIN 17175
We can supply various grades of seamless boiler pipes, such as St35.8, St45.8, 15Mo3, 13CrMo44, 10CrMo910, etc.

Size RangeThe size range of JST seamless steel boiler tube is as follows:

Outer dimension is from 6.0 mm to 219.0 mm.
Wall thickness of DIN 17175 seamless boiler pipe ranges from 1 mm to 30 mm.
The maximum length is 12 m.

DIN 17175 seamless steel tube for elevated temperature St35.8, St45.8, 17Mn4, 19Mn5, 15Mo3, 13CrMo44

This seamless boiler pipe can also be used as heating surface pipe, economizer, superheater, reheater and petrochemical industrial pipe for high-pressure boilers (The working pressure is above hunting for.8 Mpa in general and the working temperature is between 450℃ to 650℃. ).




ASTM A179 (ASME SA179) Pipe Chemical Composition:

Chemical CompositionCMnP≤S≤Si≤
0.06-0.180.27-0.630.0350.0350.25

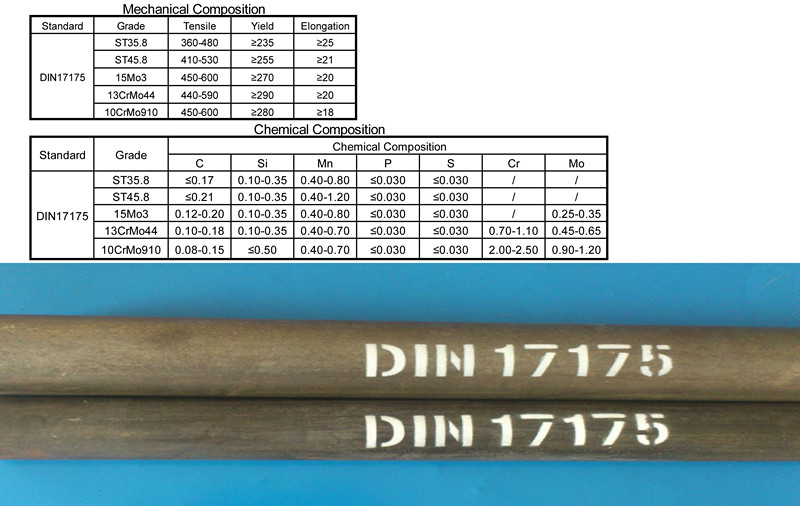

DIN 17175 Alloy pipe Chemical Composition:

Grade

Chemical Composition (%)
CSiMnPSNiCrMoOthers
St35.80.17Max0.10~0.350.40~0.800.040Max0.040Max
St45.80.21Max0.10~0.350.40~1.200.040Max0.040Max
17Mn40.14~0.200.20~0.400.90~1.200.040Max0.040Max0.30Max
19Mn50.17~0.220.30~0.601.00~1.300.040Max0.040Max0.30Max
15Mo30.12~0.200.10~0.350.40~0.800.035Max0.035Max0.25~0.35
13CrMo9100.10~0.180.10~0.350.40~0.700.035Max0.035Max0.70~1.100.45~0.65
10CrMo9100.08~0.150.50Max0.40~0.700.035Max0.035Max2.00~2.500.90~1.20
14MoV630.10~0.180.10~0.350.40~0.700.035Max0.035Max0.30~0.600.50~0.70V: 0.22~0.32
X20CrMoV1210.17~0.230.50Max0.40~0.700.030Max0.030Max0.30~0.8010.00~12.500.80~1.20V: 0.25~0.35




ASTM A179 (ASME SA179) Pipe Mechanical Property:

Steel GradeYield Strength (Mpa)Tensile Strength (Mpa)Elongation (%)
ASTM A179≥180≥325≥35



Mechanical Properties of Seamless DIN 17175Boiler Pipe:

Grade



Materia

number

Tensile Test MPa or N/mm2

Remaks(Similar to JIS)

Possibility Temperature

Min Yield point

Tensile Strength

t 16Max16<t 40Max
St35.8
1.0305
235
225
360~480

Impact Test at Room Temp.kgf-m

(STPT38)


St45.8
1.0405
245
410~530
23.5(STPT410, STB410)

17Mn4
1.0481
275
460~580
22.8

19Mn5
1.0482
315
510~610
23.5(STB52)

15Mo3
1.5415
275
275
450~600
23.5

13CrMo910
1.7335
295
295
440~590
23.2(STPA22, STBA22)

10CrMo910
1.7380
285
285
450~600
23.2(STPA24, STBA24)

14MoV63
1.7715
325
325
460~610
24.2

X20CrMoV121
1.4922
490
490
690~850
23.5





ASTM A179 Seamless Tube Dimensions:

OD (mm)Wall Thickness (mm)
 22.533.544.5566.5-77.5-88.5-99.5-101112
Φ25-Φ28
Φ32
Φ34-Φ36
Φ38
Φ40
Φ42
Φ45
Φ48-Φ60
Φ63.5
Φ68-Φ73
Φ76
Φ80
Φ83
Φ89
Φ95
Φ102
Φ108
Φ114
Φ121
Φ127
Φ133
Φ140
Φ146
Φ152
Φ159
Φ168

 SA-450/SA-450M:

OD In (mm)+WT In (mm)+
<1(25.4)0.100.10≤1.1/2(38.1)20%0
1∼1.1/2(25.4∼38.1)0.150.15>1.1/2(38.1)22%0
>1.1/2∼<2(38.1∼50.8)0.200.20
2∼<2.1/2(50.8∼63.5)0.250.25
2.1/2∼<3(63.5∼76.2)0.300.30
3∼4(76.2∼101.6)0.380.38
>4∼7.1/2(101.6∼190.5)0.380.64
>7.1/2∼9(190.5∼228.6)0.381.14
