The Triple Layer Titan: Maximized Corrosion Protection Through Innovation
Guaranteeing reliability in demanding environments has always pushed engineers to seek new frontiers in asset protection. For pipelines tasked with safely transporting society’s lifeblood of resources, options once seen as state-of-the-art gradually face obsolescence as conditions and standards evolve. Enter 3LPE—a triple layered composite coating elevating corrosion resistance to unprecedented heights through multifaceted synergistic defense.
While traditional liquid epoxies and even venerable FBE coatings served admirably for decades, their versatility faced limits under certain extreme operating parameters. Contractors and owners demanding optimum protection for offshore, sour gas, or saline soil applications require an integrated barrier fortified on multiple levels. It is here where 3LPE’s trois pronged approach demonstrates its industry-leading abilities through ingenious material selection and processing.
At the core, a corrosion-resistant steel profile receives a hot-dip metallic zinc layer alloyed directly within its atomic matrix. This cathodic protection process forms a 5-12 mil metallurgically bonded zinc shield, galvanically sacrificing to insulate the steel should any microscopic holies emerge.
A second epoxy powder coat layer then adheres to the zinc’s clean surface via a propriety chemical bonding treatment. This 100-125 micron powder epoxy differs crucially from conventional liquid epoxies prone to solvent entrapment weak points—its 100% solids formulation cures into a uniform impermeable film fully penetrating zinc microroughening.
The unique chemical bond between epoxy and zinc forms an synergistic barrier where neither layer could perform as well alone. As corrosion tries building at the zinc interface, the epoxy cuts off ion permeation pathways to self-repair. Any zinc sacrificing simply recharges epoxy’s protection.

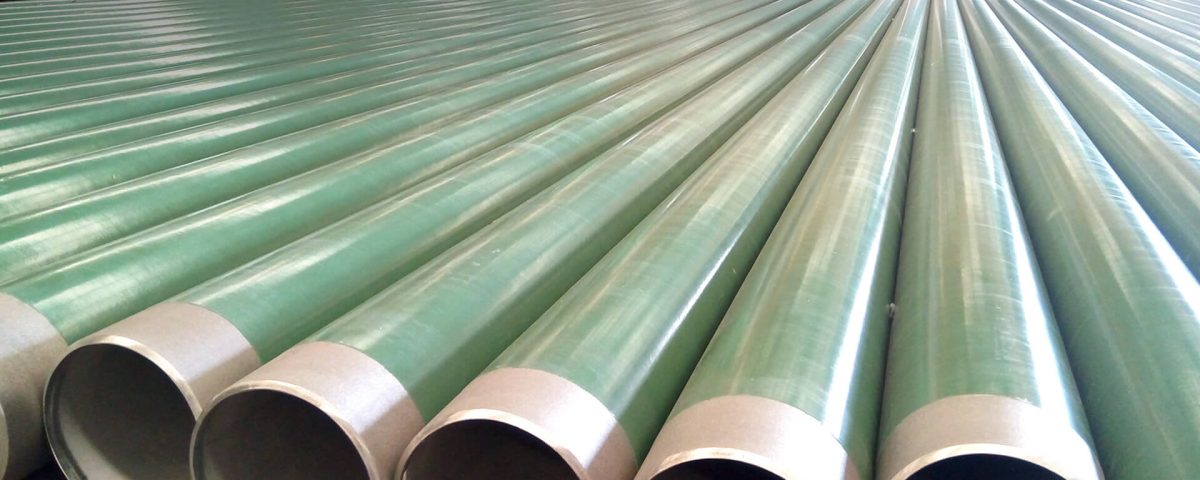

Completing the triple play, a topcoat extrusion of high-density polyethylene wraps the epoxy in a continuous 3mm thermoplastic sheet. This ultra-high molecular weight polymer drastically surpasses previous tapes or wraps in durability and seamlessness. Its inherent flexibility to deform over 500% without failure far outstrips brittle alternatives, while maintaining an impervious moisture and chemical resistant shield.
Subjected to exhaustive validation, 3LPE coated test sections emerging unscathed showcase its real world potential. Accelerated lab simulations projecting 75+ years exposure triumphed over onslaughts defeating other solutions, from direct holidays and mechanical abrasions to immersed permeation and cathodic disbondment trials. 3MBOHH2S media at 150°C could not penetrate its lines of defense.
Field implementations rapidly follow such results. From ultra-deep offshore risers to desert H2S gathering lines to intercontinental export pipelines, 3LPE enables constructing assets previously considered too risky. Its flexible strength accommodates field girth welds and complex routing without coating damage.
Logistical gains like coat-weld-coat continuous production and simple hydrotesting cut project timelines versus fragile competitors too. As global 3LPE usage multiplies, not a single confirmed corrosion-influenced failure has occurred to date across hundreds of demanding applications totalling billions of feet.
When uptime, safety, and environmental protection demand the foremost protection, 3LPE earned top honors as engineered coating of choice. Its added assurance offsets higher initial outlays by guaranteeing multi-generational service life without coatings interventions—true peace of mind for custodians of vital infrastructure. As a testament to humanity’s relentless scientific spirit, 3LPE armor fortifies hydrocarbons safely delivering modern progress for all society to share.
