Exploring the Advantages of Clad Pipe and Lined Pipe in Various Industries

In the world of industrial piping, clad pipe and lined pipe are two popular options that offer unique advantages in various industries. These specialized pipes are used to transport fluids, gases, and chemicals in a wide range of applications. In this article, we will explore the advantages of clad pipe and lined pipe and how they are utilized in different industries.

Material: Carbon,low alloy,chrome moly,stainless steel and other steels of corrosion resistant alloy including Inconel,Monel and wear resistant alloy of hard facing materials.
Metallurgically Bonded Pipes,Fittings,Hot induction Bends.
Seamless: Up to DN300mm,
Welded: Up to DN1800.
Mechanically Bonded Pipes: DN75-DN600mm.
Weld overlay cladding: Flanges,Nozzles,Pipes,Bends,Fittings.DN50-DN1200mm
Reference List:
CNPC,Sinopes,Sembcorp Industries,Bushehr Petrochemical Co.(BUPC),FMC Technologies,CNOOC China.

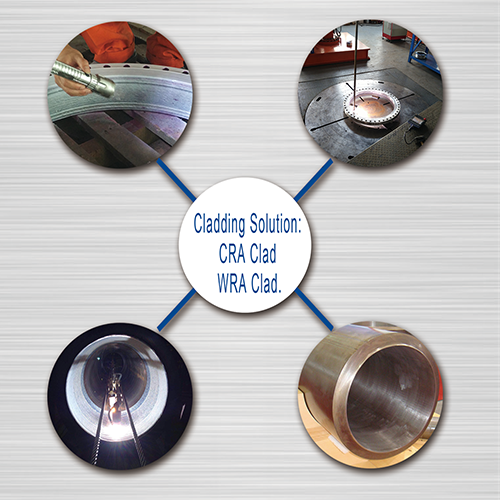

Cladding-Solution-CRA-Clad-WRA-Clad

CRA-Clad-WRA-Clad

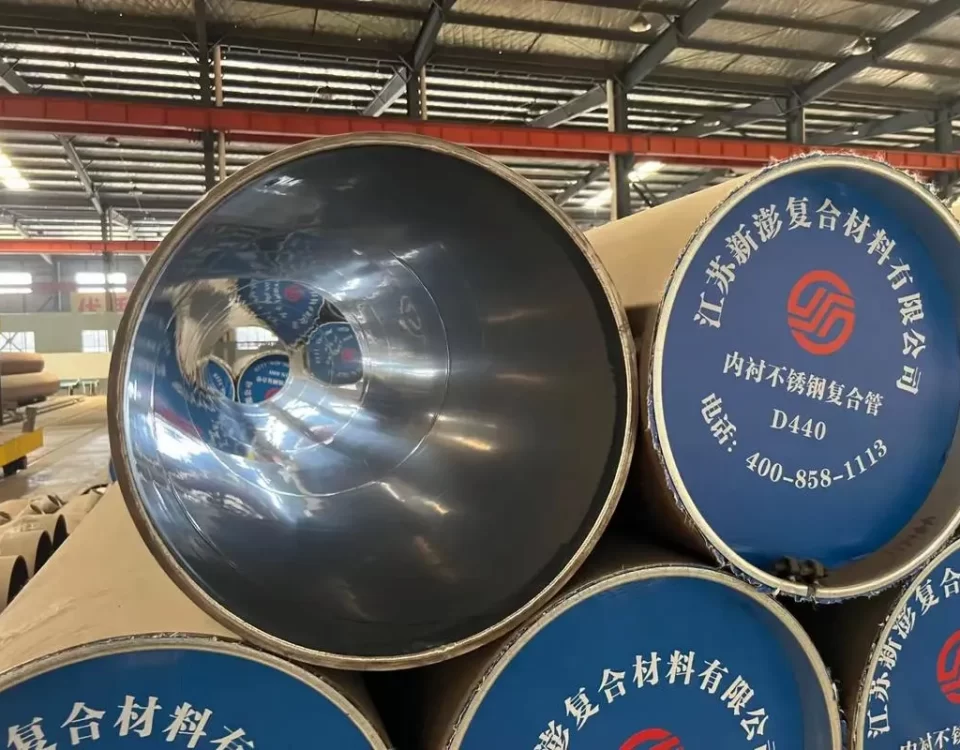

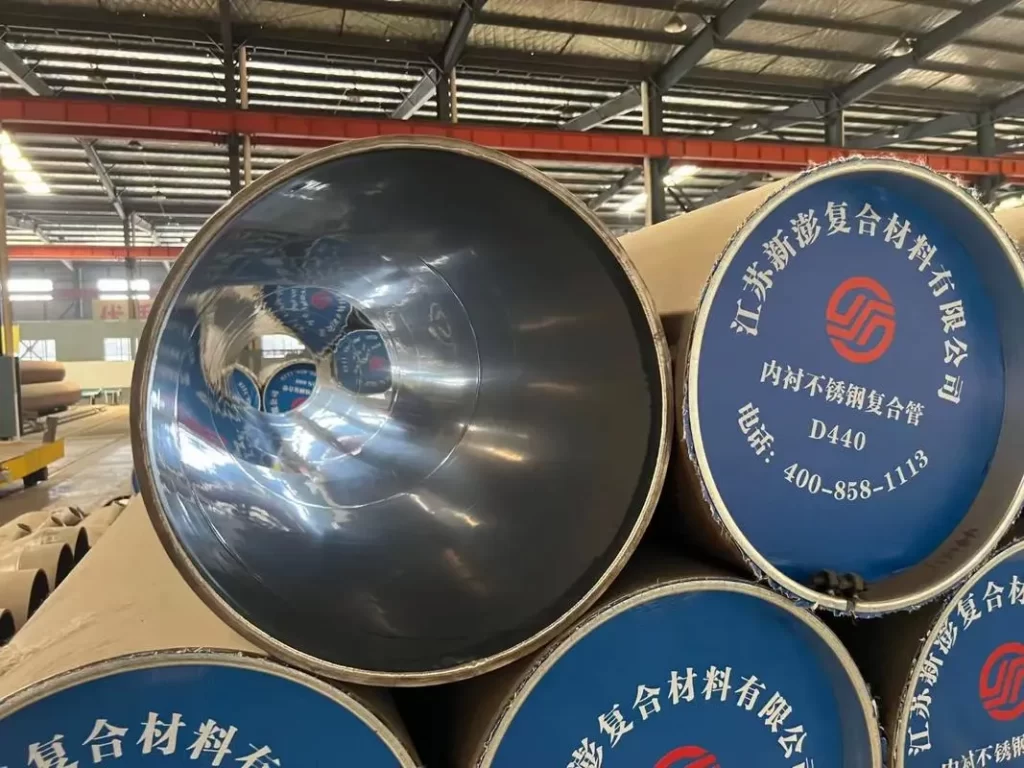

Mechanical Lined Pipe

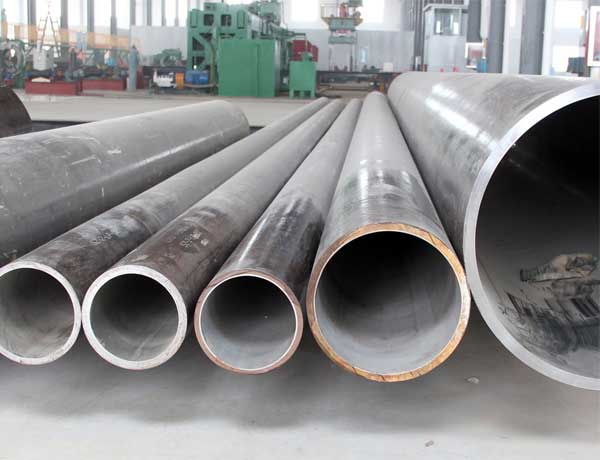

Advantages of Clad Pipe

Clad pipe consists of a carbon steel or alloy steel pipe that is lined with a layer of corrosion-resistant material, such as stainless steel, nickel alloy, or titanium. This combination of materials offers several advantages, including:

1. Corrosion Resistance: The primary advantage of clad pipe is its exceptional resistance to corrosion. The corrosion-resistant layer protects the inner pipe from corrosive substances, enhancing the longevity and durability of the pipe. This is especially beneficial in industries where the transportation of corrosive fluids is common.
2. Cost-Effectiveness: Clad pipe provides a cost-effective solution compared to using solid corrosion-resistant pipes throughout the entire system. By utilizing a carbon steel or alloy steel pipe as the base material and applying a thin layer of corrosion-resistant material only where necessary, clad pipe offers significant cost savings while still providing corrosion resistance.
3. Strength and Structural Integrity: Clad pipe maintains the structural integrity and strength of the base pipe, as it relies on the sturdiness of the carbon steel or alloy steel material. This is important in industries where high-pressure or high-temperature processes are involved.
4. Versatility and Customizability: Clad pipe can be customized to suit specific project requirements. The choice of base material, corrosion-resistant material, and thickness of the clad layer can be tailored to meet the demands of different industries, ensuring optimal performance in various environments.

Applications of Clad Pipe

Clad pipe is widely used in industries such as:

1. Oil and Gas: Clad pipe is commonly utilized in oil and gas exploration, production, and refining processes. It is particularly beneficial in offshore environments where corrosion resistance is crucial due to exposure to saltwater and harsh conditions.
2. Chemical Processing: Clad pipe finds applications in chemical processing plants where the transportation of corrosive chemicals is involved. It helps prevent leaks and corrosion, ensuring the safety and reliability of the piping system.
3. Power Generation: Clad pipe is used in power plants, including nuclear, thermal, and renewable energy facilities. It provides resistance against the corrosive effects of high-temperature steam, chemicals, and other fluids used in power generation processes.
4. Desalination: Clad pipe plays a vital role in desalination plants, where seawater is converted into freshwater. The corrosion-resistant layer protects the pipe from the corrosive nature of seawater, ensuring the efficiency and longevity of the desalination process.

Advantages of Lined Pipe

Lined pipe, on the other hand, consists of a carbon steel or stainless steel pipe that is lined with a protective layer of various materials such as PTFE (polytetrafluoroethylene), PFA (perfluoroalkoxy), or PVDF (polyvinylidene fluoride). The advantages of lined pipe include:

1. Chemical Resistance: Lined pipe offers excellent resistance to a wide range of chemicals, making it suitable for industries dealing with highly corrosive substances. The lining acts as a barrier, preventing the corrosive materials from coming into direct contact with the pipe material.
2. Smooth Interior Surface: The lining of the pipe provides a smooth interior surface, reducing friction and minimizing the risk of clogging or scaling. This is beneficial in industries where the transportation of viscous or abrasive fluids is involved, as it helps maintain a consistent flow rate and reduces maintenance requirements.
3. Temperature Tolerance: Lined pipes can withstand a wide range of temperatures, making them suitable for applications requiring high or low temperature resistance. The choice of lining material can be tailored to meet the specific temperature requirements of the industry.
4. Flexibility: Lined pipe offers flexibility in terms of material selection and lining thickness. Different lining materials can be chosen based on the chemicals being transported, allowing for compatibility and optimal chemical resistance.

Applications of Lined Pipe

Lined pipe is commonly used in industries such as:

1. Chemical Processing: Lined pipe is extensively employed in chemical processing plants, where it is essential to transport corrosive chemicals safely. The lining acts as a protective barrier, preventing chemical reactions and maintaining the integrity of the piping system.
2. Pharmaceuticals: Lined pipe finds applications in the pharmaceutical industry, particularly in the production of drugs and pharmaceutical ingredients. The lining ensures the purity of the transported substances and prevents contamination.
3. Food and Beverage: Lined pipe is utilized in the food and beverage industry, where hygienic transportation of fluids is paramount. The lining materials used are FDA-approved and comply with industry standards, ensuring the safety and quality of the products.

4FAQ: Frequently Asked Questions

1. What factors should be considered when choosing between clad pipe and lined pipe?
   When choosing between clad pipe and lined pipe, factors such as the nature of the fluid being transported, the level of corrosion resistance required, temperature and pressure conditions, and cost considerations should be taken into account.
2. Can clad pipe and lined pipe be used interchangeably?
   Clad pipe and lined pipe serve different purposes and have distinct advantages. While they both offer corrosion resistance, clad pipe is more suitable for industries requiring strength and structural integrity, while lined pipe is ideal for industries focusing on chemical resistance and a smooth interior surface.
3. What is the maintenance requirement for clad pipe and lined pipe?
   Both clad pipe and lined pipe require regular inspection and maintenance to ensure their optimal performance. Corrosion monitoring, leak detection, and scheduled inspections are necessary to identify and address any potential issues.
4. Are clad pipe and lined pipe suitable for high-pressure applications?
   Yes, both clad pipe and lined pipe can be designed and manufactured to withstand high-pressure applications. The choice of materials and the thickness of the corrosion-resistant layer or lining should be determined based on the specific requirements of the industry.
5. Can clad pipe and lined pipe be customized for specific project needs?
   Yes, both clad pipe and lined pipe offer customization options. The choice of base material, corrosion-resistant material, lining thickness, and other parameters can be tailored to meet the unique requirements of each project, ensuring optimal performance and longevity.

By understanding the advantages and applications of clad pipe and lined pipe, industries can make informed decisions regarding their piping systems. Whether it’s the need for corrosion resistance, chemical resistance, or temperature tolerance, these specialized pipes offer reliable solutions for various industries.
