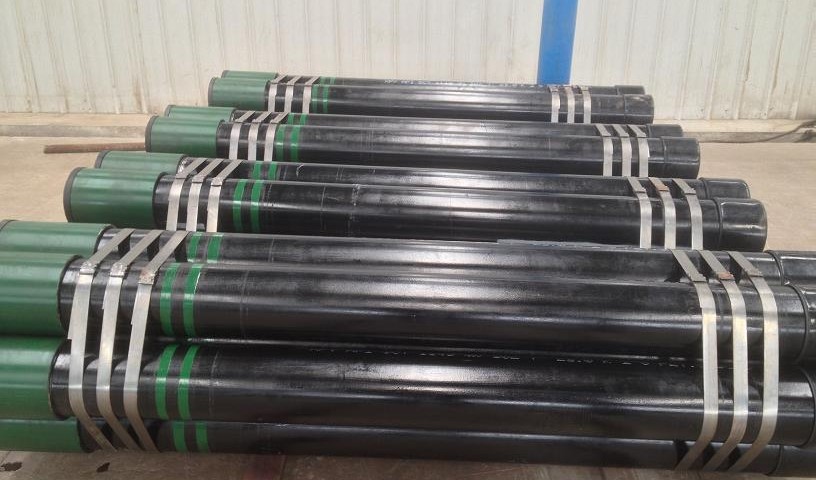

Pup Joints are used to adjust the height of full length tubing or casing strings. They are also used to adjust the depth of downhole tools. Pup Joint sets are available in: Integral Premium Thread Box-by-Pin Pin-by-Pin with couplings boxed separately Pin-by-Pin with couplings hand tight Pin-by-Coupling Box Flush joint connections
API 5CT,tubing and casing pup joint
(1)Standard: API 5CT
(2)Grade: J55,K55,L80,N80.P110
(3)Size: tubing 1.9″to4-1/2″, casing 4-1/2″to13-3/8”
(4)Type:STC,LTC,BTC,EUE,NUE
joint steel pipe and casing pup joint
|
Descriptions and size |
Type of Thread |
O.D*L(mm) |
Grade |
|
|
Tubing joint |
2-3/8″ |
NUE |
73.02*107.95 |
J55 K55 N80-1 N80-Q L80 C90 P110 |
|
2-3/8″ |
EUE |
77.80*123.82 |
||
|
2-7/8″ |
NUE |
88.90*130.18 |
||
|
2-7/8″ |
EUE |
93.17*130.35 |
||
|
3-1/2″ |
NUE |
107.95*142.88 |
||
|
3-1/2″ |
EUE |
114.30*146.05 |
||
|
4″ |
NUE |
120.65*146.05 |
||
|
4″ |
EUE |
127.00*152.40 |
||
|
4-1/2″ |
NUE |
132.08*155.58 |
||
|
4-1/2″ |
EUE |
141.30*158.75 |
||
Surface Treatment: Coating
Protection of Thread: Thread protector
Packing: By wooden case, wooden pallet, or according to customer specific requirements
