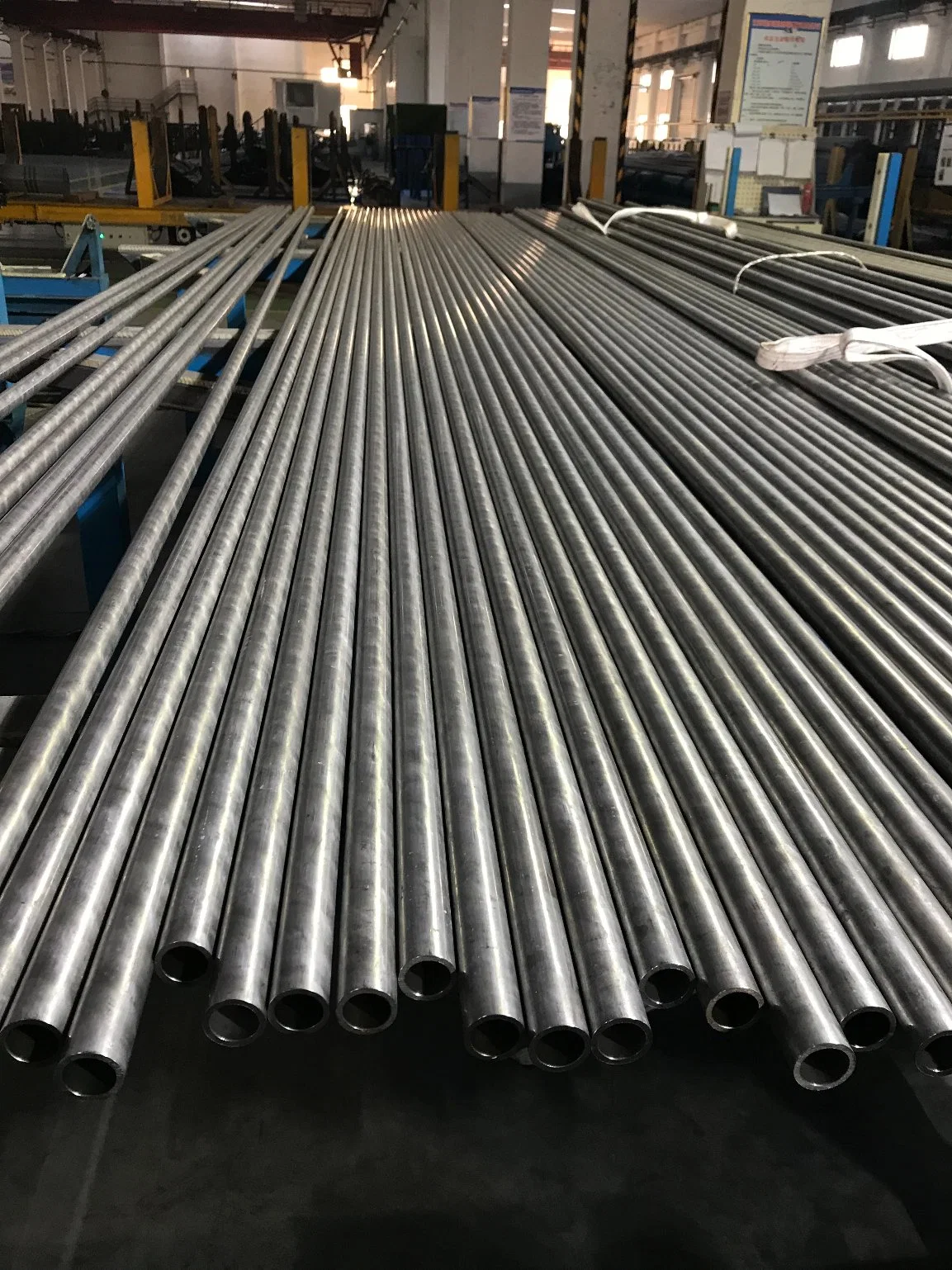

The JIS G3462 specification governs alloy steel tubes for boiler and heat exchanger applications. The primary grades under this specification include STBA12, STBA13, STBA20, STBA22, STBA23, STBA24, and STBA25. These grades are differentiated by their chemical composition and mechanical properties, which makes them suitable for distinct applications within the realm of high pressure and high-temperature environments.
1. Introduction
The Japanese Industrial Standards (JIS) G3462 is a critical specification outlining the requirements for alloy steel boiler and heat exchanger tubes. These tubes are typically utilized in high-temperature and high-pressure environments, making their resilience, strength, and resistance to heat and corrosion vitally important. The JIS G3462 standard delineates the manufacturing process, finish, mechanical properties, dimensions, shape, weight, permissible deviations, testing and inspection procedures, as well as packaging and marking of the pipes.
2. Description of Steel Grades
2.1 STBA12 and STBA13
STBA12 and STBA13 are Chromium-Molybdenum steels. They are frequently used in the construction of superheater tubes, reheater tubes, and boiler tubes. The presence of Chromium and Molybdenum in these steel grades improves their resistance to corrosion and oxidation, enhances their strength at high temperatures, and improves overall durability.
2.2 STBA20 and STBA22
Similar to STBA12 and STBA13, STBA20 and STBA22 are Chromium-Molybdenum steels. They are typically used in high pressure and high-temperature applications. The addition of Chromium and Molybdenum increases the steel’s resistance to high temperatures and enhances its overall strength.
2.3 STBA23, STBA24, and STBA25
STBA23, STBA24, and STBA25 grades contain Chromium, Molybdenum, and additional elements like Vanadium (V) or Niobium (Nb). These additional elements further improve the strength, heat resistance, and corrosion resistance of the steel, making these grades suitable for application in high temperature and high-pressure environments.
JIS G3462 Chemical Composition:
| JIS G3462 Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr | Mo |
|---|---|---|---|---|---|---|---|
| STBA 12 | 0.10 ~0.20 | 0.10~0.50 | 0.30~0.80 | 0.035 | 0.035 | – | 0.45~0.65 |
| STBA 13 | 0.15~0.25 | 0.10~0.50 | 0.30~0.80 | 0.035 | 0.035 | – | 0.45~0.65 |
| STBA 20 | 0.10 ~0.20 | 0.10~0.50 | 0.30~0.60 | 0.035 | 0.035 | 0.050~0.080 | 0.45~0.65 |
| STBA 22 | 0.15 | 0.50 | 0.30~0.60 | 0.035 | 0.035 | 0.80~1.25 | 0.45~0.65 |
| STBA 23 | 0.15 | 0.50~1.00 | 0.30~0.60 | 0.030 | 0.030 | 1.00~1.50 | 0.45~0.65 |
| STBA 24 | 0.15 | 0.50 | 0.30~0.60 | 0.030 | 0.030 | 1.90~2.60 | 0.87~1.13 |
| STBA 25 | 0.15 | 0.50 | 0.30~0.60 | 0.030 | 0.030 | 4.00~6.00 | 0.45~0.65 |
| STBA 26 | 0.15 | 0.25~1.00 | 0.30~0.60 | 0.030 | 0.030 | 8.00~10.00 | 0.90~1.10 |
JIS G3462 Mechanical Property:
| JIS G3462 Grade | Tensile Property (N/mm2) | Yield Point or Yield Strength (N/mm2) | Elongation (%) | ||
|---|---|---|---|---|---|
| OD ≥ 20 mm | 10 mm ≤ OD ＜20 mm | OD ＜10 mm | |||
| NO. 12 Sample | NO. 11 Sample | NO. 11 Sample | |||
| Longitudinal | Transverse | Transverse | |||
| STBA12 | ≥ 382 | ≥ 206 | ≥ 30 | ≥ 25 | ≥ 22 |
| STBA13 | ≥ 412 | ≥ 206 | ≥ 30 | ≥ 25 | ≥ 22 |
| STBA20 | ≥ 412 | ≥ 206 | ≥ 30 | ≥ 25 | ≥ 22 |
| STBA22 | ≥ 412 | ≥ 206 | ≥ 30 | ≥ 25 | ≥ 22 |
| STBA23 | ≥ 412 | ≥ 206 | ≥ 30 | ≥ 25 | ≥ 22 |
| STBA24 | ≥ 412 | ≥ 206 | ≥ 30 | ≥ 25 | ≥ 22 |
| STBA25 | ≥ 412 | ≥ 206 | ≥ 30 | ≥ 25 | ≥ 22 |
| STBA26 | ≥ 412 | ≥ 206 | ≥ 30 | ≥ 25 | ≥ 22 |
JIS G3462 Equivalent Steel Grade:
| KS | ASTM | JIS | DIN | BS | ||||
|---|---|---|---|---|---|---|---|---|
| Grade number | GRADE | Grade number | GRADE | Grade number | GRADE | Grade number | GRADE | Grade number |
| D 3572 | STHA12 | A161 A209 |
T1 T1 |
G 3462 | STBA12 | 17175 | 15Mo 3 | – |
| STHA13 | A209 | T1a | STBA13 | – | – | – | – | |
| STHA20 | A213 | T2 | STBA20 | – | – | – | – | |
| STHA22 | A213 | T12 | STBA22 | 17175 | 13Cr Mo 44 | 3059 | S1 620 S2 620 ERW620 CEW620 |
|
| STHA23 | A199 A200 A213 |
T11 T11 T11 |
STBA23 | – | – | – | – | |
| STHA24 | A199 A200 A213 |
T22 T22 T22 |
STBA24 | 17175 | 10Cr Mo910 | 3059 | S1 622-440 S2 622-440 |
|
| STHA25 | A199 A200 A210 |
T5 T5 T5 |
STBA25 | – | – | – | – | |
| STHA26 | A199 A200 A213 |
T9 T9 T9 |
STBA26 | – | – | – | – | |
3. Manufacturing and Testing
The JIS G3462 standard outlines specific manufacturing and testing requirements for these steel grades. The manufacturing process involves shaping the steel into tubes, followed by heat treatment to achieve the desired mechanical properties. The standard also outlines the permissible deviations in dimensions, shape, and weight, ensuring that the tubes meet the requirements for their intended applications.
4. Applications
The tubes manufactured to the JIS G3462 standard are predominantly used in boiler and heat exchanger applications. They are commonly found in power plants, petrochemical plants, and other industrial facilities where high-temperature and high-pressure conditions are prevalent.
5. Conclusion
The JIS G3462 standard and its steel grades play a vital role in various industries, especially in environments requiring high pressure and temperature resistance. The different steel grades, STBA12, STBA13, STBA20, STBA22, STBA23, STBA24, and STBA25, each bring their unique properties to the table, offering suitable solutions for various challenging applications.
The above is a broad overview of the JIS G3462 standard, and each section could be expanded significantly to reach a 3500-word paper, delving into the nuances of each steel grade, the manufacturing process, testing methods, and specific applications in more detail. The latest version of the JIS G3462 standard and consultation with a materials science or metallurgical expert would provide the most accurate and detailed information.
