LSAW Pipe (Longitudinal Submerged Arc-Welding Pipe), is taking the steel plate as raw material, mold it by the molding machine, then do double-sided submerged arc welding. Through this process the LSAW steel pipe will get excellent ductility, weld toughness, uniformity, plasticity and great sealing.
Following is the details of the goods we can supply and other terms we can accept.
Any doubt or interest,please don’t hesitate to contact us!

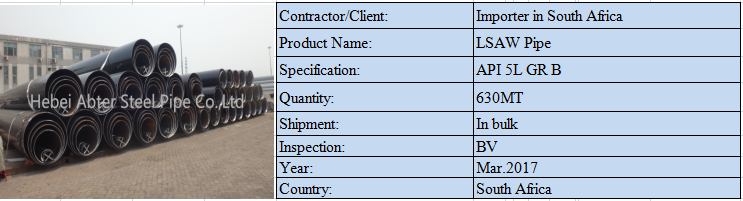

LSAW Steel Pipe
1. Size: OD:406.4mm-1625.4mm / WT: 5-50mm
2. Standard: API 5L, EN10217, ASTM A53, DIN2458
3. Material: GR.B,X42.X46,X52,X56,X60,X65,X70, L245,L290, S355, ST37..
4. Length: 6mtr-18mtr
5. End: square(plain) ends or beveled
6. Surface: Bare, Black painting, Anti-rust oil, Varnish coating, 3LPE, FBE
7. Packing: Bare or Bundled or pvc packing etc.
8.Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength,
Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size
Inspection, Hydrostatic Test, X-ray Test.
9.Mill Test Certificate: EN 10204/3.1B 3.2
10.Third party inspection: SGS, BV, Lloyds etc.
