Hebei Abter Steel Pipe is a leading supplier and exporter of OCTG Pipe

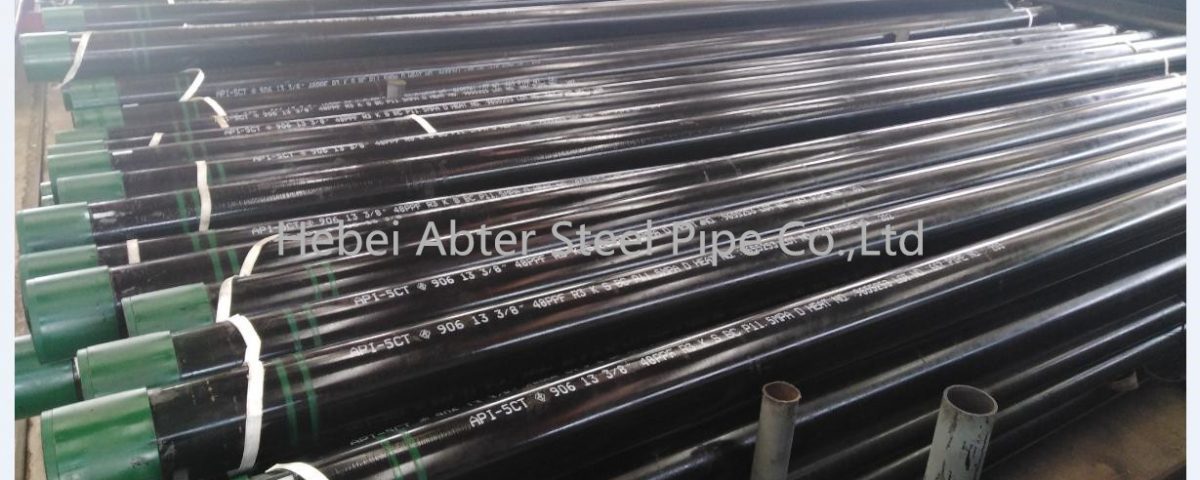

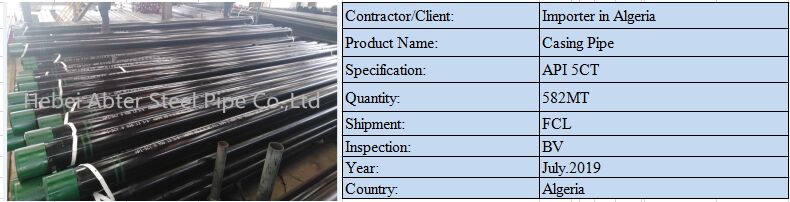

Below is one of our suppling records for one of Algeria Clients for your reference
Following is the details of the goods we can supply and other terms we can accept.
Any doubt or interest,please don’t hesitate to contact us!
API 5CT Casing Pipe
Steel Grade:H-40, J55, K-55, N-80, C-75, L-80, C-90, T-95, Q-125
Process: ERW and Seamless
Outer Diameter:Casing: OD 4 1/2″- 20″ (114.3mm-508mm)
Wall Thickness: 0. 205″- 0.635″
Length: R1(4.88mtr-7.62mtr), R2(7.62mtr-10.36mtr), R3(10.36mtr or longer)
Connection: Casing: LTC, STC, BTC.Tubing: NUE, EUE.
End: Beveled, Square cut. And pipe protection cap specially for casing and tubing.
Surface: Corrosion proofing water based paint
Heat treatment: Normalized, Quencher+Temper
Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection, Nondestructive Test (Ultrasonic flaw detector, Eddy current flaw detector), Hydrostatic Test.
Mill Test Certificate: EN 10204/3.1B
