API 5L X52 pipe & A105N Flange WNRF – Texas Customer Trade List

api 5l x52 line pipe

Dear sir or madam,

Please send us the quotation as specifications as attached file:

Your quotation should be sent before 31th August 2018.

We are looking forward to receiving your quotation.

Thanks and best regards

Ms. Thu Thuy (jolie)

TASC & Associates, Inc.

3217 Calhoun Road,

Houston, TX, 990021,

USA
Ph: 1 214 974 7321

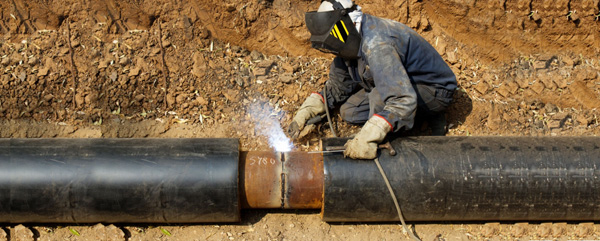

API 5L LSAW line pipe

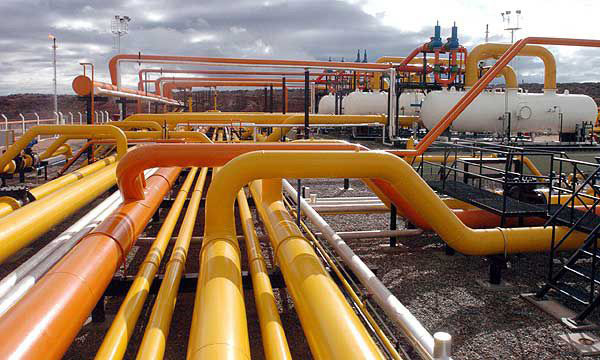

API 5L liquefied natural gas pipeline

#Plate Thickness (mm)Wt/m2 (kg/m2)Need to order (m2)Single plate area (m2)Required Quantity (Pcs)Material GradeGrade DesignationRemarks
101078.5110274AH3636.II
12862.816271A24.III
13862.8185277AH3636.II
17539.3191SS316L24.III
18323.55991AH3636.II



SHAPE SECTIONS & SEAMLESS TUBULARS:


#Item DescriptionWt/m (kg/m)Need to order (m)Member length (m)Required Quantity (Pcs)Material GradeGrade DesignationRemarks
1PIPE OD 457.2X7.92THK87.793.561API 5L GR.B24.III
2PIPE OD 406.4X22.22THK210.53962API 5L GR.X5236.II
5PIPE OD 273X6.35THK41.77261API 5L GR.B24.III
6PIPE OD 219.1X15.88THK79.54661API 5L GR.X5236.II
9PIPE OD 219.1X8.18THK42.5387615API 5L GR.B24.III
10PIPE OD 219.1X6.35THK33.31361API 5L GR.B24.III
11PIPE OD 168.3X18.26THK67.55155626API 5L GR.X5236.II
13PIPE OD 168.3X12.7THK48.722064API 5L GR.X5236.II
16PIPE OD 114.3X8.6THK22.4280614API 5L GR.X5236.II
17PIPE OD 114.3X6.02THK16.07862API 5L GR.X5224.III
18PIPE OD 88.9X11.13THK21.342264API 5L GR.B24.III
19PIPE OD 88.9X7.62THK15.2755610API 5L GR.X5236.II
24PIPE OD 60.3X5.54THK7.483065A106 GR.B24.III
25PIPE OD 60.3X5.54THK7.48170629API 5L GR.B24.III
30W16x4059.531011.81DNV AH3636.II
32W14x2232.7420011.817DNV AH3636.II
35W12x1928.2837011.832DNV AH3636.II
36W8x8x3552.0910011.89DNV AH3636.II
40C150x7518.611.811.81DNV GR A24.III
45L-60x60x65.424511.84DNV GR A24.III



FLAT & ROUND BARS:


#Item DescriptionWt/m (kg/m)Need to order (m)Member length (m)Required Quantity (Pcs)Material GradeGrade DesignationRemarks
1FB 150×1011.77560610DNV GR A24.III
2FB 150×89.42450675DNV GR A24.III
3FB 75×84.71561DNV GR A24.III
4FB 70×105.5200634DNV GR A24.III
5FB 60×62.83461DNV GR A24.III
6FB 50×103.93661DNV GR A24.III
7FB 50×62.361062DNV GR A24.III
8FB 30×61.413065DNV GR A24.III
9FB 20X60.942180630SS316L
10Square Bar 22 mm3.85069DNV GR A24.II
11DIA 50 Solid Round Bar15.4161DNV AH3636.II
12DIA 45 Solid Round Bar12.52.261DNV AH3636.II
13DIA 44 Solid Round Bar11.91.261DNV GR A24.III
14DIA 20 Solid Round Bar2.5361DNV GR A24.III
15DIA 19 Solid Round Bar2.23161DNV GR A24.III
16DIA 19 Solid Round Bar2.23261DNV AH3636.II
17DIA 16 Solid Round Bar1.580.561DNV GR A24.III
18DIA 12 Solid Round Bar0.888561DNV GR A24.III
19DIA 10 Solid Round Bar0.617261DNV GR A24.III



FASTENERS:
#Item DescriptionNeed to order (Nos)SpecificationsRemarks
1Stud Bolt M24x120mm Long Gr 8.8 Full Thread C/W Gr.8 H.H Nut, Lock Nut & Washers, Blue Fluorocarbon Coated7ASTM 568 8.8 ASTM F563M 8 ASTM F436 Type 1
7M12 x200Lg with HH Nuts and Washers36ASTM 568 8.8 ASTM F563M 8 ASTM F436 Type 1
9M12x40mm Long Machine Screw Gr 8.8 Flat Head & Hex. Head Nut Gr. 8, Teflon Coated.220ASTM 568 8.8 ASTM F563M 8 ASTM F436 Type 1
10M12x56mm long Machine Screw Gr 8.8 Flat Head & Hex. Head NutGr. 8, Teflon Coated.680ASTM 568 8.8 ASTM F563M 8 ASTM F436 Type 1
14M10x80L H.H Bolt & Nut10Gr. 8.8 HDG
15M10x80 Hex Head Bolt c/w Nut14AISI 316L
19130mm Long Cotter Pin Dia. 10115SS316L
MISC:


#Item DescriptionNeed to order (m,m2)SpecificationsRemarks
1Neoprene Gasket 2mm thk3
25×12 Tension Bands250SS316L
33 mm Tie Wire273S.S
46mmx900mm Long Safety Chain3SS316L
5Steel Mesh 2″ – 9 GA. Chain Link Fence,103Gal and Vinyl CoatedWidth 1,6m
6No. 4x12mm Sq. Mesh1SS316L
7180×150 Oak Timber7



CRANE PEDESTAL DIESEL STORAGE TANK NOZZLES

     Quantity (Nos)
#DescriptionSizeScheduleRatingEstimatedContingencyTotalMaterial SpecificationsNeed to order (Pcs)Remarks
Process Nozzles
1Flange WNRF2″80150#112A105N2
2Flange WNRF2″80150#112A105N2
3Flange WNRF2″80150#112A105N2
4Flange WNRF3″40150#112A105N2
5Flange WNRF2″80150#112A105N2
6Flange WNRF2″80150#112A105N2
Instrument Connections
1Flange WNRF2″80150#213A105N3
2Flange WNRF2″80150#213A105N3
3Flange WNRF2″80150#213A105N3
4Flange WNRF2″80150#213A105N3
5Flange WNRF2″80150#213A105N3
Manholes
1Flange WNRF24″20150#112A105N2Blind Flange with Davit
Note: Above quantities include for one spare for each diameter.
Refer to Diesel Storage Tank Datasheet (Ref [3]) for detail
